Bridging Borders with Cross Country Pipelines

Discover the remarkable process of creating cross country pipelines, the lifelines powering our modern world.

Understanding Cross Country Pipeline

A cross country pipeline is a marvel of engineering that transports vital resources across expansive territories. It's a network of connected pipes extending over vast distances, diligently carrying gases or liquids, bridging the gap between source and destination.

Row Survey

The Right of Way (ROW) Survey marks the inception of the pipeline process. This involves establishing key benchmarks, turning points, and stake markers to define the pipeline's pathway.

Row Clearing and Grading

After surveying, ROW Clearing and Grading commence. All obstructions are removed, the area is graded for equipment movement, and temporary infrastructures are created if needed.

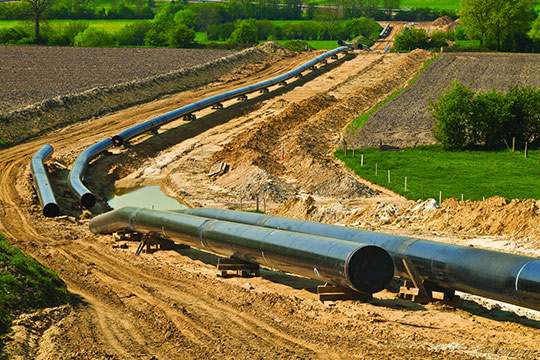

Pipe Stringing

In Pipe Stringing, coated pipes are systematically arranged on approved earth/sand-filled bags. The pipes are supported minimally at two locations to ensure stability.

Trenching

Trenching involves the excavation of soil along the marked centerline of the pipeline. The width and depth of the trench are carefully maintained for effective pipe placement.

Bending

Bending adjusts the pipeline's alignment. Pre-fabricated cold field bends are introduced, with the bend radius tailored to the pipe's diameter.

Fitup & Welding

Fitup and Welding ensure each pipe is checked for visual defects. This involves the application of clamps, and the marking of details such as Weld No., Pipe No., etc.

Field Joint Coating

Field Joint Coating applies an anticorrosion coating to the cutback areas of pipes where weld joints are made. This ensures the pipe's longevity.

Lowering

Lowering the pipeline into the trench is done with care using cranes or side booms. This ensures the pipeline is laid without interruptions.

Backfilling

Backfilling is the process of replacing soil in the trench after the pipeline is lowered. This provides natural anchorage and protects the pipeline.

Tie in Joints

Tie in Joints connect the sections of the lowered pipeline at various locations. These are then welded, coated, and backfilled for pipeline integrity.

Hydro Testing

Hydro Testing involves testing the entire length of the pipeline for leaks or weaknesses. It ensures the pipeline is ready for operation.

Pipeline markers, clean up, and restoration

Upon completion, pipeline markers are installed for easy identification. Any damage caused during construction is restored, marking the end of the project.

Understanding Rock Boring Unit: Your Solution to Tough Terrain

The Rock Boring Unit (RBU) takes pipeline installation to the next level. With its compatibility with any manufacturer's auger boring equipment, it opens up possibilities for the installation of steel casing pipes of varying diameters in high compressive geology. Armed with sturdy 6.5-inch disc cutters, muck scrapers, a high-capacity main bearing, and an innovative water-jetting system, the RBU plows through demanding ground conditions with relative ease. The water-jetting system enhances performance, extends the lifespan of the equipment, and reduces operating costs.

Key Features of Rock Boring Unit

Broad Compatibility: Can be used with any auger boring machine to install 24‐48‐in. steel casing.
Robust Design: Equipped with high capacity thrust load disc cutters for aggressive rock fracturing.
Cutter Head Rock Scrapers: These facilitate the transfer of cuttings away from the face to the inlet cavity, enabling efficient removal.
Cooling System: Fluid connection ports allow for cooling of the bearing assembly, prolonging its lifespan and performance.
Versatility: Performs well in varied ground conditions including rock, clay, and silt.

Specification

Model	Casing Diameter	Thrust / Cutters	Weight
RBU 24	24 in	25 ton / 9	2,200 lbs
RBU 30	30 in	25 ton / 9	2,800 lbs
RBU 36	36 in	34 ton / 11	4,000 lbs
RBU 42	42 in	45 ton / 16	4,700 lbs
RBU 48	48 in	50 ton / 18	5,500 lbs
